5MP Metal Bullet Network Camera
Payment Method:

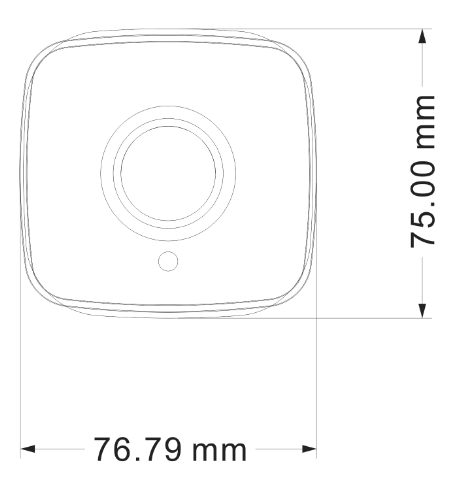

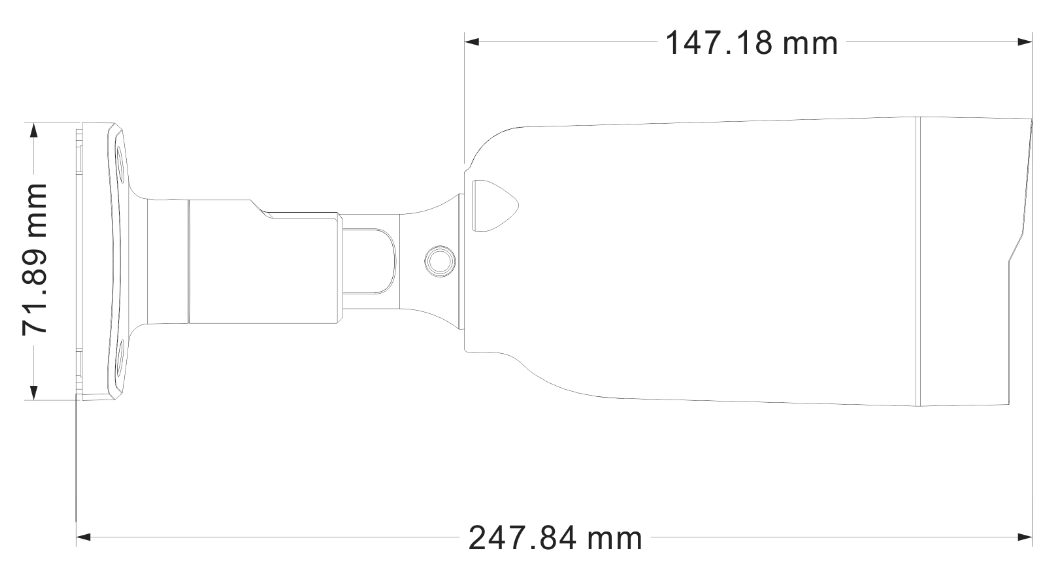

Dimension
Specifications
| Video | |
| Image Sensor | 1/3” CMOS |
| Max Resolution | 2560*1792 |
| Effective Pixels | 5MP |
| Compression Standard | H.265/H.264 |
| Frame Rate | 20fps |
| Bit Rate | 272Kbps～8Mbps |
| SNR (dB) | 52dB |
| Min. Illumination | 0Lux (IR ON) |
| Lens | |
| Lens | 4mm,M12 |
| FOV | H: 78.5°, V: 42.8° D: 92.6° |
| IR-LEDs | 28µx4 LEDs |
| IR-Distance | Up to 20 Meters |
| Function | |
| Exposure Control | Support |
| White Balance | Auto |
| Image Enhancement | BLC/HLC/3D DNR/DWDR/Defog |
| Advanced OSD | Support OSD large font function, OSD and time to set the position separately，5 lines x 32 characters |
| Privacy Mask | Support 8 Rectangle Areas |
| Motion Detection | Support |
| Image Setting | Rotate, Saturation, Brightness, Contrast, Sharpness |
| Day and night function | Day and night automatic switching |
| Privacy Mask | Support up 8 areas |
| Intelligent Analysis | Support Region Intrusion, Line Crossing, People Counting, Video Tampering, Human Detection |
| Alarm Method | Email Alarm |
| Remote Operation | System, Stream, Alarm, Network Management |
| Expansion Interface | N/A |
| NETWORK | |
| Ethernet | 10M / 100M Ethernet ,1 RJ45 |
| Stream | 2x Streams |
| Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS, DDNS |
| ONVIF | ONVIF 2.4 |
| Network transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| GENERAL | |
| Power Supply | DC12V or PoE |
| Power Consumption | <3W (During day); <6W (At night with IR) |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 0% ~ 90% Rh |
| Material | Metal |
| Dimensions (WxHxD) | 248x77*75mm |
| Weight | 500g |
| Waterproof | IP66 |
