VTS02 Dual Lens Three Video Screen Solar Camera

Short Description:

Model: VTS02

• Dual Lens with three Video Screen
• 8 watt solar panel and built-in 8000mAh batteries
• Full Color Night Vision, IR distance: 10m～15m
• Two Way Audio
• Two versions: wifi camera or 4G camera.
• Waterproof level IP66.

Payment Method:

Send email to us

Product Detail

This advanced solar-powered camera features dual lenses that can stream three video feeds simultaneously. The top fixed lens captures two surveillance views from different angles, expanding the overall field of view, while the bottom lens features a 360-degree rotating gimbal for precise and flexible monitoring. This innovative design optimizes coverage, enhances depth perception, improves analysis accuracy, and offers exceptional versatility across various security applications.

Main features of VST02 solar camera:

1. 2MP+ 2MP dual lens offering 3 video screens
2. 4G or wifi 2.4GHz Optional
4. 8-watt solar panel with built-in8000 mAh batteries
5. Two-way voice intercom
6. Light & Audio Warning
7. H.265 new storage design
7. Cloud storage and TF card storage maximum 128G（ TF card not included）
8. Waterproof grade IP66

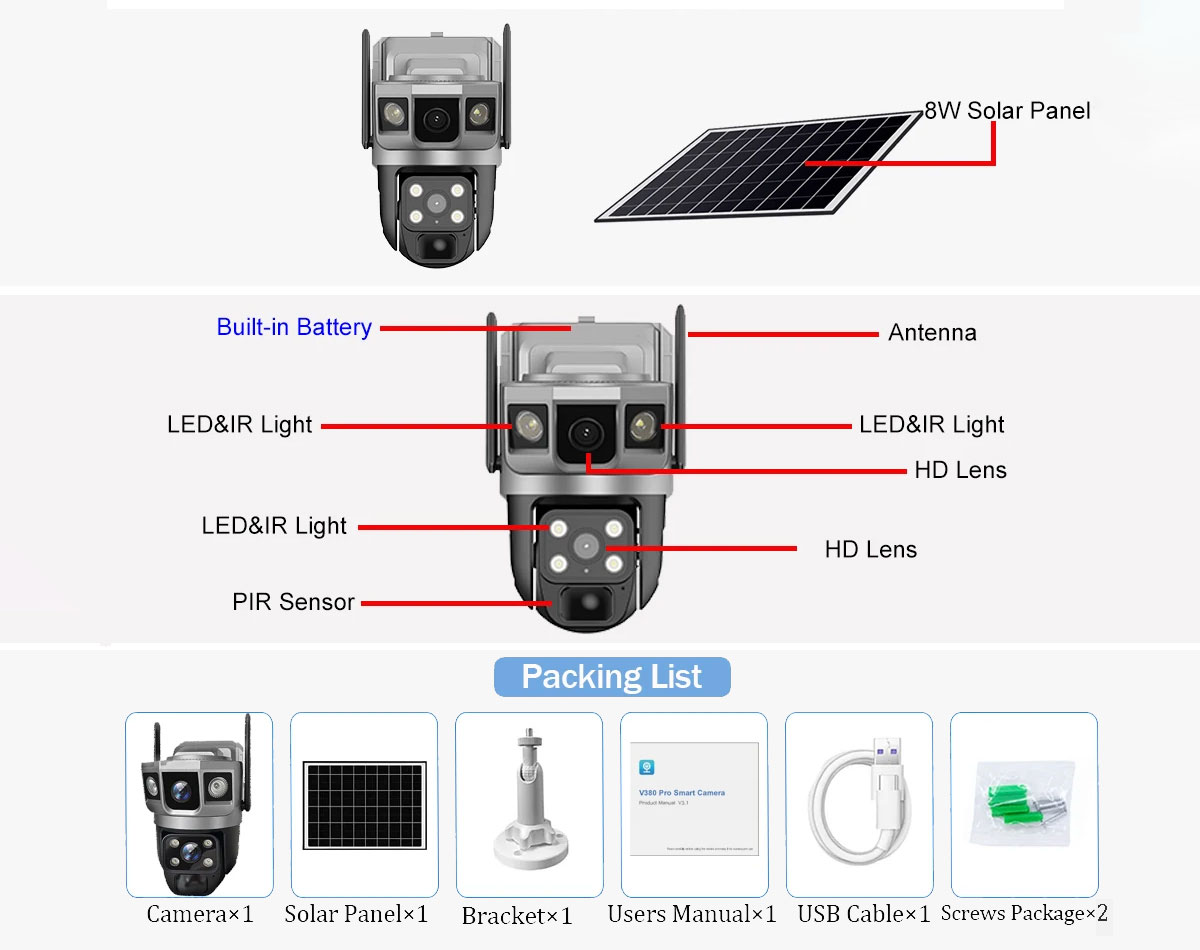

Product Overview

Specifications

VTS02-WIFI OR VTS02-4G
Model:	VTS02
DSP	AK KM01N
Sensor	1/2.9" Progressive Scan CMOS（GC3003*2）
Min. Illumination	Color：0.1Lux@(F2.0,AGC ON),0 Lux with Light
Top Lens	2.8mm F2.0
Bottom Lens	3.6mm F2.0
Shutter Time	1/3s ～1/100,000s
Day&Night	IR Cut Filter
WDR	Digital WDR
Pixel	2MP*2
Resolution	Main stream:1920×2160;Sub stream:640×720
Frame Rate	15fps
Image Setting	Flip Mode
Image Enhancement	BLC/3D DNR/DWDR
Compression Standard
Video Compression	H.265_AVI
Video Bit Rate	32Kbps~1.5Mbps
Audio Compression	ACC
Audio Bit Rate	8kbps
Interface & Function
PTZ angle	Horizontal 350° vertical 90°
Networking Method	2.4G WIFI (support IEEE802.11b/g/n)
Networking Method	4G-BAND1/3/5/8/34/38/39/40/41
Audio	Built-in MIC and Speakers support two-way audio
General	NTP、Time Stamping、 Micro SD Card Storage（Max128G)
Alarm	Motion detection, motion tracking, humanoid detection
Reset Button	Yes
Others
power supply mode	DC5V/2A adapter / solar panel + 3.7V 18650 battery
Solar panel power	8W
Battery Capacity	Built-in 8000mah battery
Operation Temperature	Working Temperature：-10℃～+50℃；Working humidity:0%~75%RH
Infrared LED	Bullet Camera:2IR LEDs PTZ camera： 4IR LEDs
IR Distance	Infrared LED distance: 10m～15m (It varies from environment)
Installation	Wall mounted
Color box	266196145MM
Carton size	6142.552.5CM
Qty /CTN	12pcs
